NS-430D-01

ELECTRONIC BAR TACKING MACHINE

NS-430D-01

Superior sewing quality and high efficiency, highest rotating speed 3200rpm

NS-430D-01 PRODUCT FEATURES

Oil-free, clean and durable, with black diamond bar and bearing thread take-up lever, through the solid oil micro-oil lubrication, to prevent the fabric oil,clean and durable.

Energy-saving, economical and practical

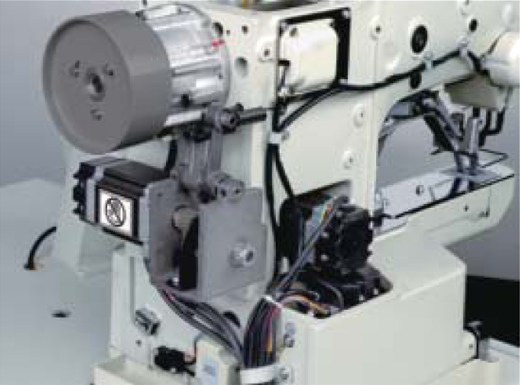

The machine adopts computer direct drive without transmission loss and is equipped with electricity-saving motor of which energy consumption is 35% less than traditional machine.

Easy and accurate positioning of sewing

Driven by pulse motor, height of lift-presser foot is set as 2-phase. Easy positioning of sewing greatly reduces set time. Moreover, the pedal reacts quickly, which can be greatly reduce the noise for more comfortable work.

No need for further treatment after thread cutting

In order to shorten the left thread, the machine adopts special movable knife and fixed knife installed near the feeding position. Length of the after-cutting thread is 2~2.5mm, no need for further thread-picking work.

High-quality sewing in complete according to sewing data

As for its intense rigidity the feeding device and take-up-lever device, the machine will not undergo bended or warped sewing even at high speed.
As each pulse analyzes and transmits data with a resolution of 0.05mm,therefore, no matter it is slash or curve, machine can finish accurately and smoothly.

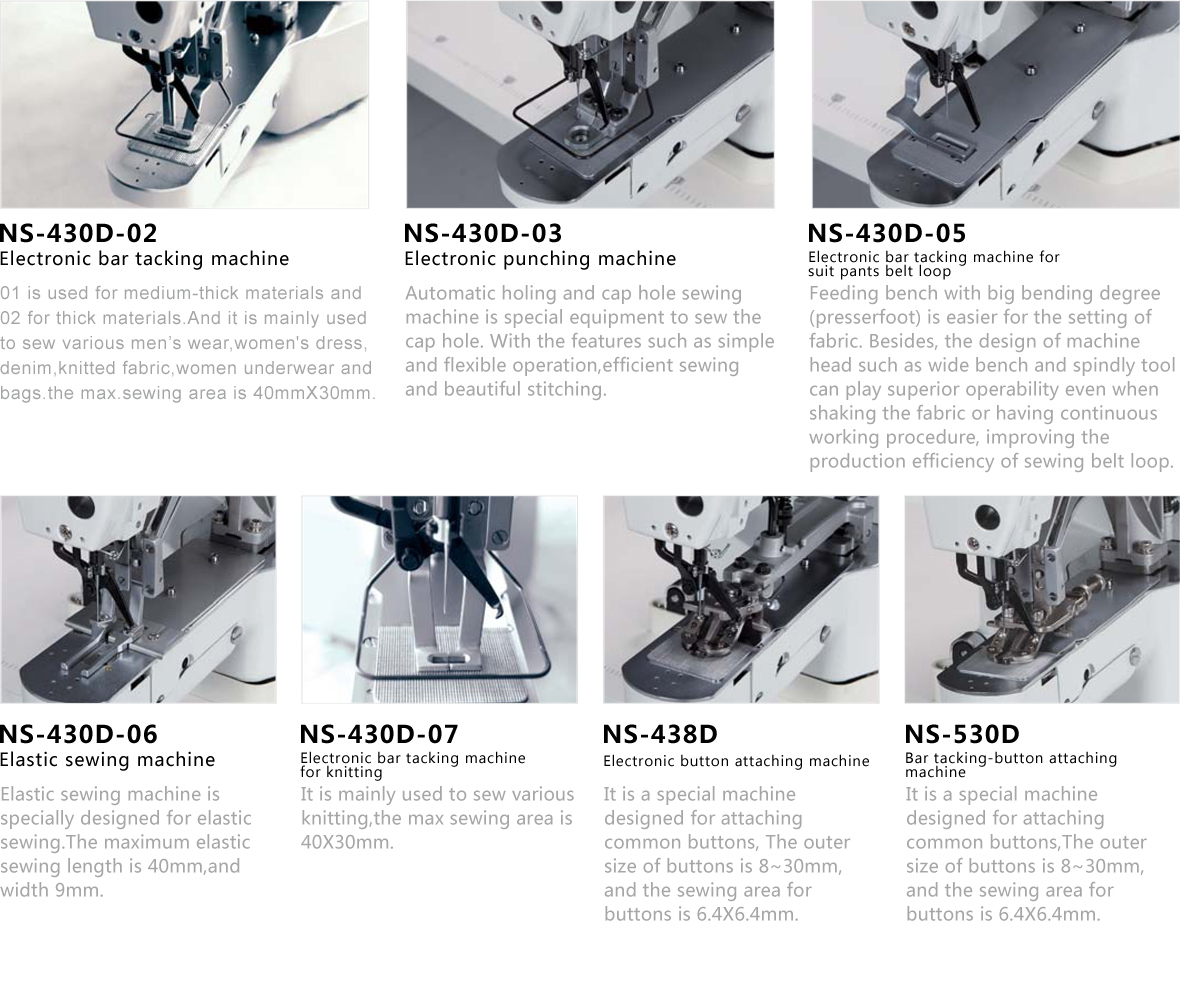

NS-430D-01 Application Example

SPECIFICATIONS

  • NS-430D-01
  • NS-430D-02
  • NS-430D-03
  • NS-430D-05
  • NS-430D-06
  • NS-430D-07
  • NS-438D
  • NS-530D
Application
Electronic bar tacking machine
Stitch
Single-needle flat stitch
Max. sewing speed
3200 rpm
Sewing area (X × Y)
40×30mm
Size of button can be sewn
-
Feeding
Intermittent feed (pulsed motor drive mode)
Stitch length
0.05-12.7mm
Max. Stitch
5000 needle / 1 pattern
Presser lifter mode
Pulsed motor drive mode
Height of presser foot
Max. 17mm
Height of button lifting
-
Hooks
Semi - rotating standard rotary hook
Thread wiper device
Standard equipment
Thread trimmer device
Standard equipment
Data storage mode
Flash card (using CF card can add any pattern)
External data storage medium
CF card
Number of cyclic programs
30 cycles (50 programs for each)
Number of stored data
Has set up 89 kinds of patterns (up to add up to 512 kinds of patterns, additional total needle number of about 500000 pin) * 2
Motor
AC servo motor 550W(Direct drive)
Power supply
Single phase100~120V、200~240V、Three phase 200~240V、380~415V、350V
Weight
Head: about 56kg
Air Pressure
-
Application
Electronic bar tacking machine
Stitch
Single-needle flat stitch
Max. sewing speed
3200 rpm
Sewing area (X × Y)
40×30mm
Size of button can be sewn
-
Feeding
Intermittent feed (pulsed motor drive mode)
Stitch length
0.05-12.7mm
Max. Stitch
5000 needle / 1 pattern
Presser lifter mode
Pulsed motor drive mode
Height of presser foot
Max. 17mm
Height of button lifting
-
Hooks
Semi - rotating standard rotary hook
Thread wiper device
Standard equipment
Thread trimmer device
Standard equipment
Data storage mode
Flash card (using CF card can add any pattern)
External data storage medium
CF card
Number of cyclic programs
30 cycles (50 programs for each)
Number of stored data
Has set up 89 kinds of patterns (up to add up to 512 kinds of patterns, additional total needle number of about 500000 pin) * 2
Motor
AC servo motor 550W(Direct drive)
Power supply
Single phase100~120V、200~240V、Three phase 200~240V、380~415V、350V
Weight
Head: about 56kg
Air Pressure
-
Application
Electronic punching machine
Stitch
Single-needle flat stitch
Max. sewing speed
3200 rpm
Sewing area (X × Y)
15×15mm
Size of button can be sewn
-
Feeding
Intermittent feed (pulsed motor drive mode)
Stitch length
0.05-12.7mm
Max. Stitch
5000 needle / 1 pattern
Presser lifter mode
Pulsed motor drive mode
Height of presser foot
Max. 17mm
Height of button lifting
-
Hooks
Semi - rotating standard rotary hook
Thread wiper device
Standard equipment
Thread trimmer device
Standard equipment
Data storage mode
Flash card (using CF card can add any pattern)
External data storage medium
CF card
Number of cyclic programs
30 cycles (50 programs for each)
Number of stored data
Has set up 89 kinds of patterns (up to add up to 512 kinds of patterns, additional total needle number of about 500000 pin) * 2
Motor
AC servo motor 550W(Direct drive)
Power supply
Single phase100~120V、200~240V、Three phase 200~240V、380~415V、350V
Weight
Head: about 56kg
Air Pressure
0.5Mpa 1.5L/min
Application
Electronic bar tacking machine for suit pants belt loop
Stitch
Single-needle flat stitch
Max. sewing speed
3200 rpm
Sewing area (X × Y)
40×30mm
Size of button can be sewn
-
Feeding
Intermittent feed (pulsed motor drive mode)
Stitch length
0.05-12.7mm
Max. Stitch
5000 needle / 1 pattern
Presser lifter mode
Pulsed motor drive mode
Height of presser foot
Max. 17mm
Height of button lifting
-
Hooks
Semi - rotating standard rotary hook
Thread wiper device
Standard equipment
Thread trimmer device
Standard equipment
Data storage mode
Flash card (using CF card can add any pattern)
External data storage medium
CF card
Number of cyclic programs
30 cycles (50 programs for each)
Number of stored data
Has set up 89 kinds of patterns (up to add up to 512 kinds of patterns, additional total needle number of about 500000 pin) * 2
Motor
AC servo motor 550W(Direct drive)
Power supply
Single phase100~120V、200~240V、Three phase 200~240V、380~415V、350V
Weight
Head: about 56kg
Air Pressure
-
Application
Elastic sewing machine
Stitch
Single-needle flat stitch
Max. sewing speed
3200 rpm
Sewing area (X × Y)
9×40mm
Size of button can be sewn
-
Feeding
Intermittent feed (pulsed motor drive mode)
Stitch length
0.05-12.7mm
Max. Stitch
5000 needle / 1 pattern
Presser lifter mode
Pulsed motor drive mode
Height of presser foot
Max. 17mm
Height of button lifting
-
Hooks
Semi - rotating standard rotary hook
Thread wiper device
Standard equipment
Thread trimmer device
Standard equipment
Data storage mode
Flash card (using CF card can add any pattern)
External data storage medium
CF card
Number of cyclic programs
30 cycles (50 programs for each)
Number of stored data
Has set up 89 kinds of patterns (up to add up to 512 kinds of patterns, additional total needle number of about 500000 pin) * 2
Motor
AC servo motor 550W(Direct drive)
Power supply
Single phase100~120V、200~240V、Three phase 200~240V、380~415V、350V
Weight
Head: about 56kg
Air Pressure
0.5Mpa 1.5L/min
Application
Electronic bar tacking machine for knitting
Stitch
Single-needle flat stitch
Max. sewing speed
3200 rpm
Sewing area (X × Y)
40×30mm
Size of button can be sewn
-
Feeding
Intermittent feed (pulsed motor drive mode)
Stitch length
0.05-12.7mm
Max. Stitch
5000 needle / 1 pattern
Presser lifter mode
Pulsed motor drive mode
Height of presser foot
Max. 17mm
Height of button lifting
-
Hooks
Semi - rotating standard rotary hook
Thread wiper device
Standard equipment
Thread trimmer device
Standard equipment
Data storage mode
Flash card (using CF card can add any pattern)
External data storage medium
CF card
Number of cyclic programs
30 cycles (50 programs for each)
Number of stored data
Has set up 89 kinds of patterns (up to add up to 512 kinds of patterns, additional total needle number of about 500000 pin) * 2
Motor
AC servo motor 550W(Direct drive)
Power supply
Single phase100~120V、200~240V、Three phase 200~240V、380~415V、350V
Weight
Head: about 56kg
Air Pressure
0.5Mpa 1.5L/min
Application
Electronic button attaching machine
Stitch
Single-needle flat stitch
Max. sewing speed
2700 rpm
Sewing area (X × Y)
6.4×6.4mm
Size of button can be sewn
8-30 rpm
Feeding
Intermittent feed (pulsed motor drive mode)
Stitch length
0.05-12.7mm
Max. Stitch
5000 needle / 1 pattern
Presser lifter mode
Pulsed motor drive mode
Height of presser foot
-
Height of button lifting
Max. 13mm
Hooks
Semi - rotating standard rotary hook
Thread wiper device
Standard equipment
Thread trimmer device
Standard equipment
Data storage mode
Flash card (using CF card can add any pattern)
External data storage medium
CF card
Number of cyclic programs
30 cycles (50 programs for each)
Number of stored data
Has set up 89 kinds of patterns (up to add up to 512 kinds of patterns, additional total needle number of about 500000 pin) * 2
Motor
AC servo motor 550W(Direct drive)
Power supply
Single phase100~120V、200~240V、Three phase 200~240V、380~415V、350V
Weight
Head: about 56kg
Air Pressure
-
Application
Bar tacking-button attaching machine
Stitch
Single-needle flat stitch
Max. sewing speed
2700 rpm
Sewing area (X × Y)
40×30mm
Size of button can be sewn
8-30 rpm
Feeding
Intermittent feed (pulsed motor drive mode)
Stitch length
0.05-12.7mm
Max. Stitch
5000 needle / 1 pattern
Presser lifter mode
Pulsed motor drive mode
Height of presser foot
Max. 17mm
Height of button lifting
Max. 13mm
Hooks
Semi - rotating standard rotary hook
Thread wiper device
Standard equipment
Thread trimmer device
Standard equipment
Data storage mode
Flash card (using CF card can add any pattern)
External data storage medium
CF card
Number of cyclic programs
30 cycles (50 programs for each)
Number of stored data
Has set up 89 kinds of patterns (up to add up to 512 kinds of patterns, additional total needle number of about 500000 pin) * 2
Motor
AC servo motor 550W(Direct drive)
Power supply
Single phase100~120V、200~240V、Three phase 200~240V、380~415V、350V
Weight
Head: about 56kg
Air Pressure
-
The above types are only for reference, and you can consult local distributors for details.
Specifications are subject to change for improvement without further notice. Please carefully read the operating manual before use for safety.
