NS-3525GH-01A

ELECTRONIC PATTERN SEWING MACHINE

NS-3525GH-01A

Even in High Speed or Sewing Thick Fabric, It Can Totally Achieve High Quality and Stable Sewing.

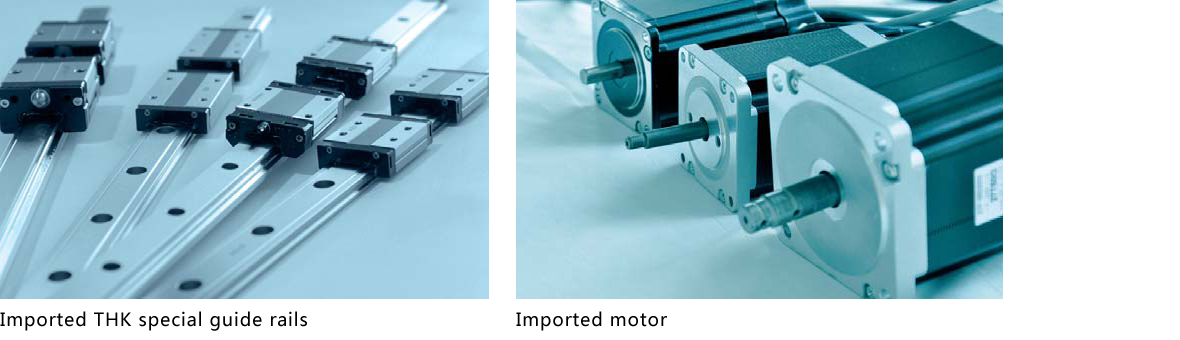

NS-3525GH-01A Function Extension

NS-3525GH-01A Application Example

NS-3525GH-01A Ordering Instruction

SPECIFICATIONS

  • NS-3020GH-01A
  • NS-3525GH-01A
  • NS-4030GH-01A
Using
Flat-stitching pattern sewing machine(2-time hook)
Stitch
Single-needle flat stitch
Highest sewing speed
2,800 rpm
Sewing area (XxY)
Max.(mm) 300x200
Cloth feeding device
Intermittent feeding (driven by pulse motor)
Stitch length
0.05 - 12.7mm
Maximum needle number
20,000 stitches/1 pattern
Presser foot drive
Pulse motor drive
Work clamp height
-0□S:maximum 25 mm -0□A:maximum 30 mm
2-step presser foot
-0□S:integrated presser foot -0□A:divided presser foot
Height of intermittent presser foot
22 mm
Stroke of intermittent presser foot
0 or 2 - 10 mm(Factory setting:3mm)
Hook
Hook (standard hooks are options)
Thread wipe device
Standard
Thread trimmer device
Standard
Data storage
Standard USB interface, U disk storage
Motor
AC servomotor 750W
Weight
Head:about 88 kg Operating panel:about 0.6 kg
control box:14.2 - 16.2 kg(according to different countries)
Power
Single phase 220V, 3-phase 380V
Air pressure
0.5 Mpa 1.7 l/min
Using
Flat-stitching pattern sewing machine(2-time hook)
Stitch
Single-needle flat stitch
Highest sewing speed
2,800 rpm
Sewing area (XxY)
Max.(mm) 350x250
Cloth feeding device
Intermittent feeding (driven by pulse motor)
Stitch length
0.05 - 12.7mm
Maximum needle number
20,000 stitches/1 pattern
Presser foot drive
Pulse motor drive
Work clamp height
-0□S:maximum 25 mm -0□A:maximum 30 mm
2-step presser foot
-0□S:integrated presser foot -0□A:divided presser foot
Height of intermittent presser foot
22 mm
Stroke of intermittent presser foot
0 or 2 - 10 mm(Factory setting:3mm)
Hook
Hook (standard hooks are options)
Thread wipe device
Standard
Thread trimmer device
Standard
Data storage
Standard USB interface, U disk storage
Motor
AC servomotor 750W
Weight
Head:about 88 kg Operating panel:about 0.6 kg
control box:14.2 - 16.2 kg(according to different countries)
Power
Single phase 220V, 3-phase 380V
Air pressure
0.5 Mpa 1.7 l/min
Using
Flat-stitching pattern sewing machine(2-time hook)
Stitch
Single-needle flat stitch
Highest sewing speed
2,800 rpm
Sewing area (XxY)
Max.(mm) 400x300
Cloth feeding device
Intermittent feeding (driven by pulse motor)
Stitch length
0.05 - 12.7mm
Maximum needle number
20,000 stitches/1 pattern
Presser foot drive
Pulse motor drive
Work clamp height
-0□S:maximum 25 mm -0□A:maximum 30 mm
2-step presser foot
-0□S:integrated presser foot -0□A:divided presser foot
Height of intermittent presser foot
22 mm
Stroke of intermittent presser foot
0 or 2 - 10 mm(Factory setting:3mm)
Hook
Hook (standard hooks are options)
Thread wipe device
Standard
Thread trimmer device
Standard
Data storage
Standard USB interface, U disk storage
Motor
AC servomotor 750W
Weight
Head:about 88 kg Operating panel:about 0.6 kg
control box:14.2 - 16.2 kg(according to different countries)
Power
Single phase 220V, 3-phase 380V
Air pressure
0.5 Mpa 1.7 l/min
The above types are only for reference, and you can consult local distributors for details.
Specifications are subject to change for improvement without further notice. Please carefully read the operating manual before use for safety.
