NS-1510GH-01A

ELECTRONIC PATTERN SEWING MACHINE

NS-1510GH-01A

Quick Sewing Speed, Beautiful stitch.

NS-1510GH-01A PRODUCT FEATURES

Use the NS600 programming software

Can be quickly and easily edit the patterns, but also compatible with "VDT, SEW" and other format patterns, modify the pattern is more simple, according to icons and commands, easy to create sewing data.

High-speed and stable sewing quality

Can reach the speed of 2800sti / min, high rigidity of the fabric feeding device to further enhance. It can still accurately needle and beautiful stitch with high-speed sewing.

Equipped with thread catch and thread breaking sensor

We can accordingly achieve high and stable sewing quality with thread catch device, which will stop sewing and inform the operator when thread breaking, to reduce the defective goods.

Strong penetration

Equipped with a 750W high-power motor, can play a strong needle penetration. When the penetration resistance is further increased, through the vibration control (intermittent impact), automatically enhance the penetration.

Support USB data interface

Support USB data interface access, larger memory, storage faster.

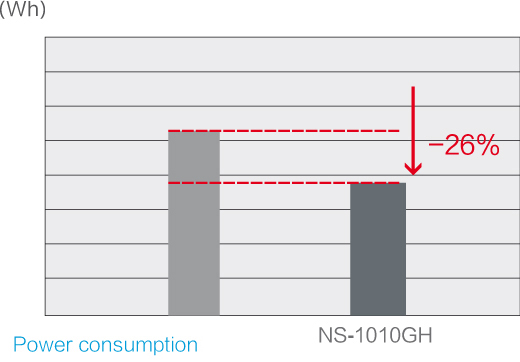

High efficiency, Energy-saving

Not only to achieve a high speed sewing and strong needle penetration, but also reached a low energy consumption in the same sewing area level.
2800sti / min when sewing, rotate for 3 seconds,
AC200V specifications

Uniform and stable collection

To achieve a stable stitch in the low tension. In addition, since the height of the intermittent presser foot can be changed, even if the thickness of the fabric changes, there is no case where the pressing is not in place or the pressing is excessive, so as to ensure a uniform and stable take-up effect.

Adjust the operation is simple

The drive phase can be adjusted without putting down the machine.
Can reduce the adjustment time after the fabric changes, thereby improving the production efficiency.

Change the patterns simply

Just need to loosen two bolts or four bolts to complete the replacement of the presser foot.

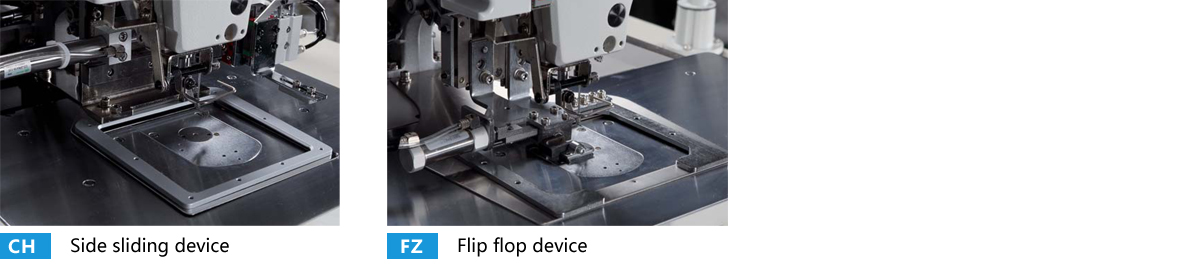

NS-1510GH-01A Function Extension

NS-1510GH-01A Application Example

NS-1510GH-01A Ordering Instruction

SPECIFICATIONS

  • NS-1510GH-01A
Using
Flat-stitching pattern sewing machine(2-time hook)
Stitch
Single-needle flat stitch
Highest sewing speed
2,800 rpm
Sewing area (XxY)
Max.(mm) 150x100
Cloth feeding device
Intermittent feeding (driven by pulse motor)
Stitch length
0.05 - 12.7mm
Maximum needle number
20,000 stitches/1 pattern
Presser foot drive
Pulse motor drive
Work clamp height
-0□S:maximum 25 mm -0□A:maximum 30 mm
2-step presser foot
-0□S:integrated presser foot -0□A:divided presser foot
Height of intermittent presser foot
22 mm
Stroke of intermittent presser foot
0 or 2 - 10 mm(Factory setting:3mm)

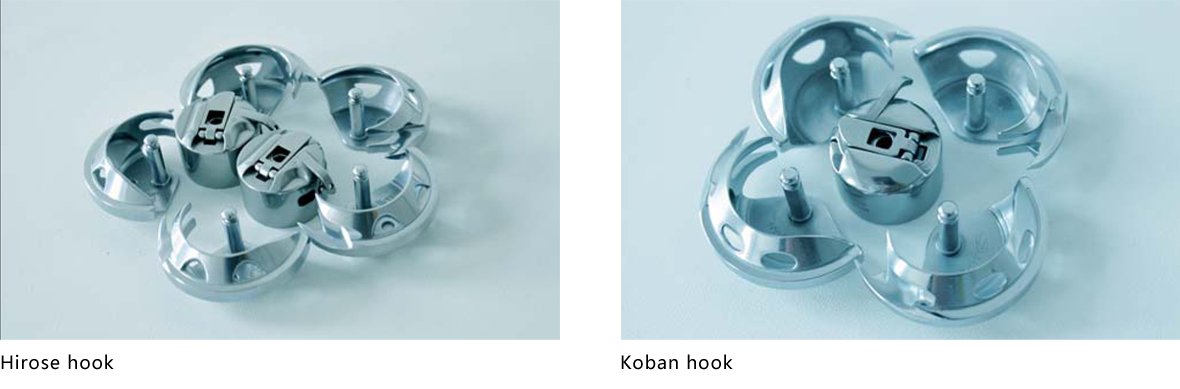

Hook
Hook (standard hooks are options)
Thread wipe device
Standard
Thread trimmer device
Standard
Data storage
Standard USB interface, U disk storage
Motor
AC servomotor 750W
Weight
Head:about 88 kg Operating panel:about 0.6 kg
control box:14.2 - 16.2 kg(according to different countries)
Power
Single phase 220V, 3-phase 380V
Air pressure
0.5 Mpa 1.7 l/min
The above types are only for reference, and you can consult local distributors for details.
Specifications are subject to change for improvement without further notice. Please carefully read the operating manual before use for safety.
